1. Overview
In this tutorial, you will learn about the perfect binary tree. Also, you will find working examples for checking a perfect binary tree in C, C++, Java and Python.

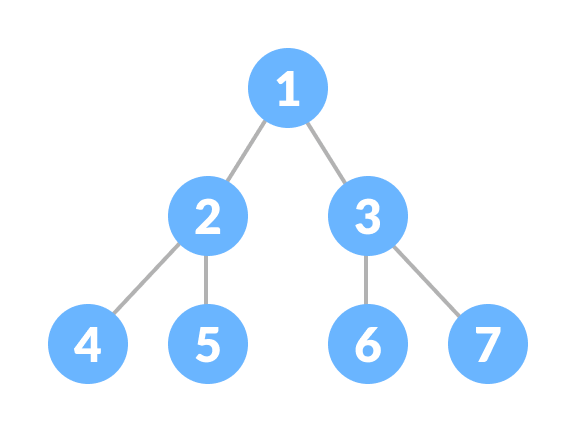

A perfect binary tree is a type of binary tree in which every internal node has exactly two child nodes and all the leaf nodes are at the same level.
All the internal nodes have a degree of 2.

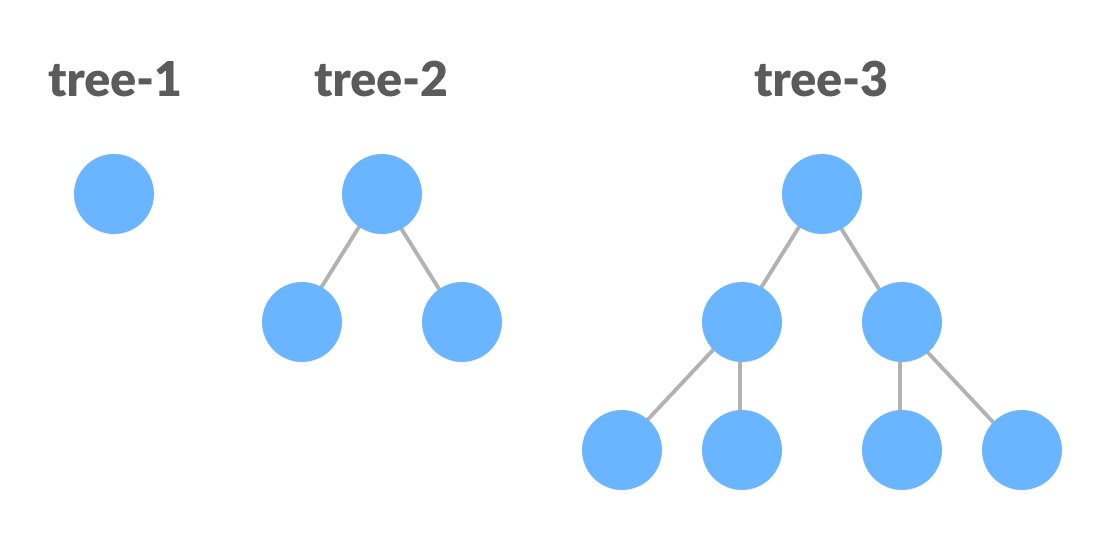

Recursively, a perfect binary tree can be defined as:
- If a single node has no children, it is a perfect binary tree of height
h = 0
, - If a node has
h > 0
, it is a perfect binary tree if both of its subtrees are of heighth - 1
and are non-overlapping.
2. Python, Java and C/C++ Examples
The following code is for checking whether a tree is a perfect binary tree.
Source code by Python Language:
# Checking if a binary tree is a perfect binary tree in Python class newNode: def __init__(self, k): self.key = k self.right = self.left = None # Calculate the depth def calculateDepth(node): d = 0 while (node is not None): d += 1 node = node.left return d # Check if the tree is perfect binary tree def is_perfect(root, d, level=0): # Check if the tree is empty if (root is None): return True # Check the presence of trees if (root.left is None and root.right is None): return (d == level + 1) if (root.left is None or root.right is None): return False return (is_perfect(root.left, d, level + 1) and is_perfect(root.right, d, level + 1)) root = None root = newNode(1) root.left = newNode(2) root.right = newNode(3) root.left.left = newNode(4) root.left.right = newNode(5) if (is_perfect(root, calculateDepth(root))): print("The tree is a perfect binary tree") else: print("The tree is not a perfect binary tree")
Source code by Java Language:
// Checking if a binary tree is a perfect binary tree in Java class PerfectBinaryTree { static class Node { int key; Node left, right; } // Calculate the depth static int depth(Node node) { int d = 0; while (node != null) { d++; node = node.left; } return d; } // Check if the tree is perfect binary tree static boolean is_perfect(Node root, int d, int level) { // Check if the tree is empty if (root == null) return true; // If for children if (root.left == null && root.right == null) return (d == level + 1); if (root.left == null || root.right == null) return false; return is_perfect(root.left, d, level + 1) && is_perfect(root.right, d, level + 1); } // Wrapper function static boolean is_Perfect(Node root) { int d = depth(root); return is_perfect(root, d, 0); } // Create a new node static Node newNode(int k) { Node node = new Node(); node.key = k; node.right = null; node.left = null; return node; } public static void main(String args[]) { Node root = null; root = newNode(1); root.left = newNode(2); root.right = newNode(3); root.left.left = newNode(4); root.left.right = newNode(5); if (is_Perfect(root) == true) System.out.println("The tree is a perfect binary tree"); else System.out.println("The tree is not a perfect binary tree"); } }
Source code by C Language:
// Checking if a binary tree is a perfect binary tree in C #include <stdbool.h> #include <stdio.h> #include <stdlib.h> struct node { int data; struct node *left; struct node *right; }; // Creating a new node struct node *newnode(int data) { struct node *node = (struct node *)malloc(sizeof(struct node)); node->data = data; node->left = NULL; node->right = NULL; return (node); } // Calculate the depth int depth(struct node *node) { int d = 0; while (node != NULL) { d++; node = node->left; } return d; } // Check if the tree is perfect bool is_perfect(struct node *root, int d, int level) { // Check if the tree is empty if (root == NULL) return true; // Check the presence of children if (root->left == NULL && root->right == NULL) return (d == level + 1); if (root->left == NULL || root->right == NULL) return false; return is_perfect(root->left, d, level + 1) && is_perfect(root->right, d, level + 1); } // Wrapper function bool is_Perfect(struct node *root) { int d = depth(root); return is_perfect(root, d, 0); } int main() { struct node *root = NULL; root = newnode(1); root->left = newnode(2); root->right = newnode(3); root->left->left = newnode(4); root->left->right = newnode(5); root->right->left = newnode(6); if (is_Perfect(root)) printf("The tree is a perfect binary tree\n"); else printf("The tree is not a perfect binary tree\n"); }
Source code by C++ Language:
// Checking if a binary tree is a perfect binary tree in C++ #include <iostream> using namespace std; struct Node { int key; struct Node *left, *right; }; int depth(Node *node) { int d = 0; while (node != NULL) { d++; node = node->left; } return d; } bool isPerfectR(struct Node *root, int d, int level = 0) { if (root == NULL) return true; if (root->left == NULL && root->right == NULL) return (d == level + 1); if (root->left == NULL || root->right == NULL) return false; return isPerfectR(root->left, d, level + 1) && isPerfectR(root->right, d, level + 1); } bool isPerfect(Node *root) { int d = depth(root); return isPerfectR(root, d); } struct Node *newNode(int k) { struct Node *node = new Node; node->key = k; node->right = node->left = NULL; return node; } int main() { struct Node *root = NULL; root = newNode(1); root->left = newNode(2); root->right = newNode(3); root->left->left = newNode(4); root->left->right = newNode(5); root->right->left = newNode(6); if (isPerfect(root)) cout << "The tree is a perfect binary tree\n"; else cout << "The tree is not a perfect binary tree\n"; }
3. Perfect Binary Tree Theorems
- A perfect binary tree of height h has
2h + 1 – 1
node. - A perfect binary tree with n nodes has height
log(n + 1) – 1 = Θ(ln(n))
. - A perfect binary tree of height h has
2h
leaf nodes. - The average depth of a node in a perfect binary tree is
Θ(ln(n))
.
