Adjacency Matrix

1. Overview

In this tutorial, you will learn what an adjacency matrix is. Also, you will find working examples of adjacency matrix in C, C++, Java and Python.

An adjacency matrix is a way of representing a graph as a matrix of booleans (0’s and 1’s). A finite graph can be represented in the form of a square matrix on a computer, where the boolean value of the matrix indicates if there is a direct path between two vertices.

For example, we have a graph below.

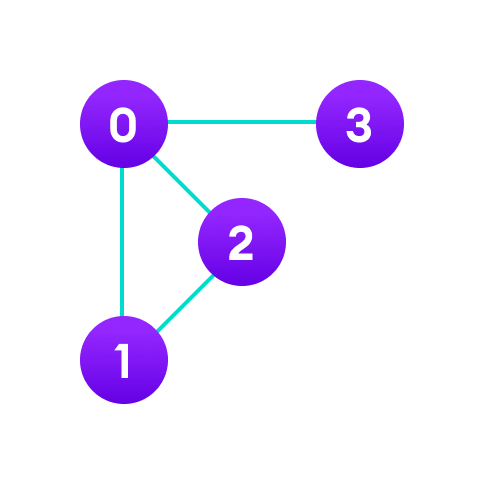

An undirected graph
An undirected graph

We can represent this graph in matrix form like below.

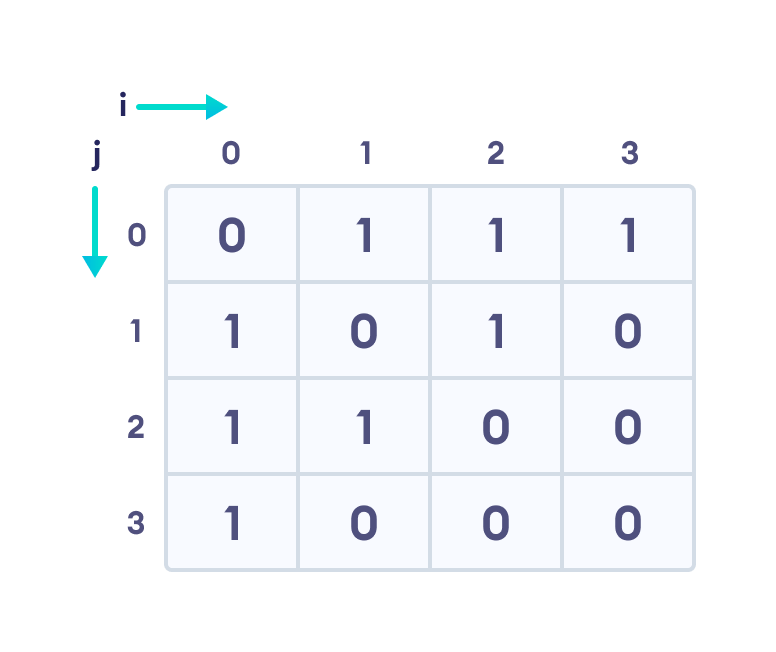

Matrix representation of the graph
Matrix representation of the graph

Each cell in the above table/matrix is represented as Aij, where i and j are vertices. The value of Aij is either 1 or 0 depending on whether there is an edge from vertex i to vertex j.

If there is a path from i to j, then the value of Aij is 1 otherwise its 0. For instance, there is a path from vertex 1 to vertex 2, so A12 is 1 and there is no path from vertex 1 to 3, so A13 is 0.

In case of undirected graphs, the matrix is symmetric about the diagonal because of every edge (i,j), there is also an edge (j,i).

2. Pros of Adjacency Matrix

  • The basic operations like adding an edge, removing an edge and checking whether there is an edge from vertex i to vertex j are extremely time efficient, constant time operations.
  • If the graph is dense and the number of edges is large, an adjacency matrix should be the first choice. Even if the graph and the adjacency matrix is sparse, we can represent it using data structures for sparse matrices.

3. Cons of Adjacency Matrix

  • The biggest advantage however, comes from the use of matrices. The recent advances in hardware enable us to perform even expensive matrix operations on the GPU.
  • By performing operations on the adjacent matrix, we can get important insights into the nature of the graph and the relationship between its vertices.

4. Adjacency Matrix Code in Python, Java, and C/C++

If you know how to create two dimensional arrays, you also know how to create an adjacency matrix.

Source code by Python Language:

# Adjacency Matrix representation in Python


class Graph(object):

    # Initialize the matrix
    def __init__(self, size):
        self.adjMatrix = []
        for i in range(size):
            self.adjMatrix.append([0 for i in range(size)])
        self.size = size

    # Add edges
    def add_edge(self, v1, v2):
        if v1 == v2:
            print("Same vertex %d and %d" % (v1, v2))
        self.adjMatrix[v1][v2] = 1
        self.adjMatrix[v2][v1] = 1

    # Remove edges
    def remove_edge(self, v1, v2):
        if self.adjMatrix[v1][v2] == 0:
            print("No edge between %d and %d" % (v1, v2))
            return
        self.adjMatrix[v1][v2] = 0
        self.adjMatrix[v2][v1] = 0

    def __len__(self):
        return self.size

    # Print the matrix
    def print_matrix(self):
        for row in self.adjMatrix:
            for val in row:
                print('{:4}'.format(val)),
            print


def main():
    g = Graph(5)
    g.add_edge(0, 1)
    g.add_edge(0, 2)
    g.add_edge(1, 2)
    g.add_edge(2, 0)
    g.add_edge(2, 3)

    g.print_matrix()


if __name__ == '__main__':
    main()

Source code by Java Language:

// Adjacency Matrix representation in Java

public class Graph {
  private boolean adjMatrix[][];
  private int numVertices;

  // Initialize the matrix
  public Graph(int numVertices) {
    this.numVertices = numVertices;
    adjMatrix = new boolean[numVertices][numVertices];
  }

  // Add edges
  public void addEdge(int i, int j) {
    adjMatrix[i][j] = true;
    adjMatrix[j][i] = true;
  }

  // Remove edges
  public void removeEdge(int i, int j) {
    adjMatrix[i][j] = false;
    adjMatrix[j][i] = false;
  }

  // Print the matrix
  public String toString() {
    StringBuilder s = new StringBuilder();
    for (int i = 0; i < numVertices; i++) {
      s.append(i + ": ");
      for (boolean j : adjMatrix[i]) {
        s.append((j ? 1 : 0) + " ");
      }
      s.append("\n");
    }
    return s.toString();
  }

  public static void main(String args[]) {
    Graph g = new Graph(4);

    g.addEdge(0, 1);
    g.addEdge(0, 2);
    g.addEdge(1, 2);
    g.addEdge(2, 0);
    g.addEdge(2, 3);

    System.out.print(g.toString());
  }
}

Source code by C Language:

// Adjacency Matrix representation in C

#include <stdio.h>
#define V 4

// Initialize the matrix to zero
void init(int arr[][V]) {
  int i, j;
  for (i = 0; i < V; i++)
    for (j = 0; j < V; j++)
      arr[i][j] = 0;
}

// Add edges
void addEdge(int arr[][V], int i, int j) {
  arr[i][j] = 1;
  arr[j][i] = 1;
}

// Print the matrix
void printAdjMatrix(int arr[][V]) {
  int i, j;

  for (i = 0; i < V; i++) {
    printf("%d: ", i);
    for (j = 0; j < V; j++) {
      printf("%d ", arr[i][j]);
    }
    printf("\n");
  }
}

int main() {
  int adjMatrix[V][V];

  init(adjMatrix);
  addEdge(adjMatrix, 0, 1);
  addEdge(adjMatrix, 0, 2);
  addEdge(adjMatrix, 1, 2);
  addEdge(adjMatrix, 2, 0);
  addEdge(adjMatrix, 2, 3);

  printAdjMatrix(adjMatrix);

  return 0;
}

Source code by C++ Language:

// Adjacency Matrix representation in C++

#include <iostream>
using namespace std;

class Graph {
   private:
  bool** adjMatrix;
  int numVertices;

   public:
  // Initialize the matrix to zero
  Graph(int numVertices) {
    this->numVertices = numVertices;
    adjMatrix = new bool*[numVertices];
    for (int i = 0; i < numVertices; i++) {
      adjMatrix[i] = new bool[numVertices];
      for (int j = 0; j < numVertices; j++)
        adjMatrix[i][j] = false;
    }
  }

  // Add edges
  void addEdge(int i, int j) {
    adjMatrix[i][j] = true;
    adjMatrix[j][i] = true;
  }

  // Remove edges
  void removeEdge(int i, int j) {
    adjMatrix[i][j] = false;
    adjMatrix[j][i] = false;
  }

  // Print the martix
  void toString() {
    for (int i = 0; i < numVertices; i++) {
      cout << i << " : ";
      for (int j = 0; j < numVertices; j++)
        cout << adjMatrix[i][j] << " ";
      cout << "\n";
    }
  }

  ~Graph() {
    for (int i = 0; i < numVertices; i++)
      delete[] adjMatrix[i];
    delete[] adjMatrix;
  }
};

int main() {
  Graph g(4);

  g.addEdge(0, 1);
  g.addEdge(0, 2);
  g.addEdge(1, 2);
  g.addEdge(2, 0);
  g.addEdge(2, 3);

  g.toString();
}

5. Adjacency Matrix Applications

  • The VxV space requirement of the adjacency matrix makes it a memory hog. Graphs out in the wild usually don’t have too many connections and this is the major reason why adjacency lists are the better choice for most tasks.
  • While basic operations are easy, operations like inEdges and outEdges are expensive when using the adjacency matrix representation.
  • Creating routing table in networks
  • Navigation tasks
