Insertion Sort Algorithm

Table of Contents

1. Working of Insertion Sort
2. Insertion Sort Algorithm
3. Insertion Sort in Python, Java, and C/C++
4. Insertion Sort Complexity
5. Insertion Sort Applications
6. Similar Sorting Algorithms

In this tutorial, you will learn about insertion sort algorithm and its implementation in C, C++, Java and Python.

Insertion sort is a sorting algorithm that places an unsorted element at its suitable place in each iteration.

Insertion sort works similarly as we sort cards in our hand in a card game.

We assume that the first card is already sorted then, we select an unsorted card. If the unsorted card is greater than the card in hand, it is placed on the right otherwise, to the left. In the same way, other unsorted cards are taken and put in their right place.

A similar approach is used by insertion sort.

1. Working of Insertion Sort

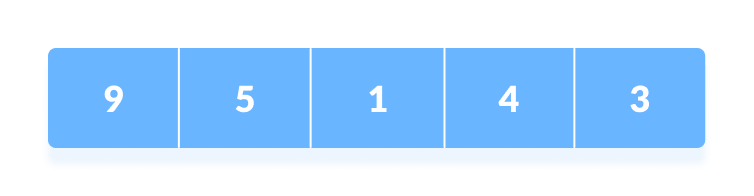

Suppose we need to sort the following array.

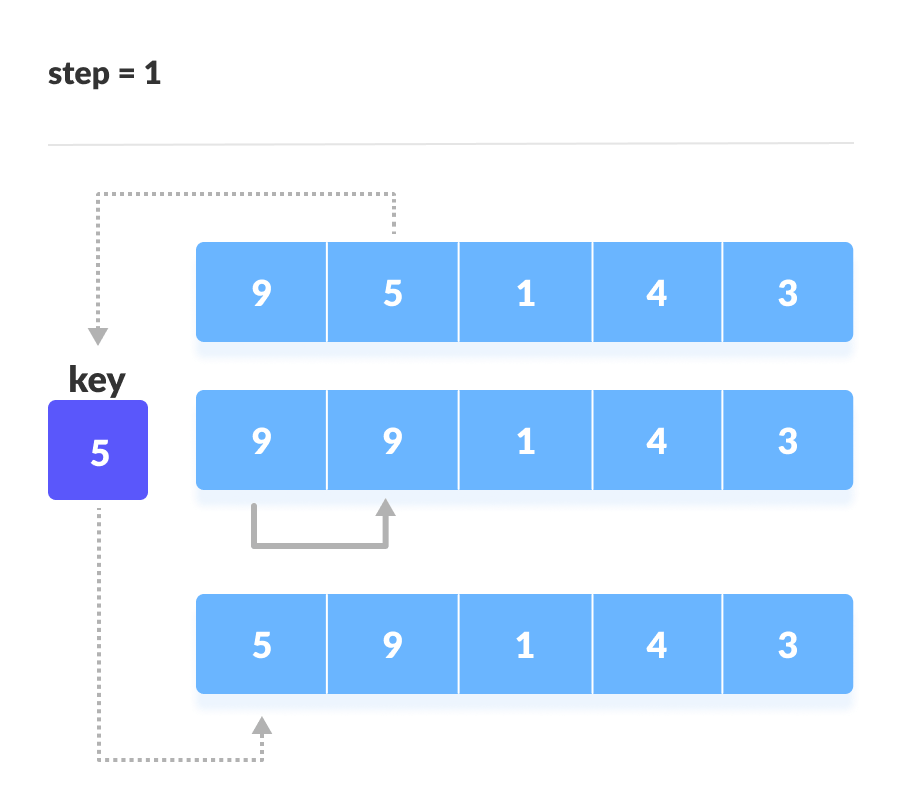

The first element in the array is assumed to be sorted. Take the second element and store it separately in key.

Compare key with the first element. If the first element is greater than key, then key is placed in front of the first element.

If the first element is greater than key, then key is placed in front of the first element.

Now, the first two elements are sorted.

Take the third element and compare it with the elements on the left of it. Placed it just behind the element smaller than it. If there is no element smaller than it, then place it at the beginning of the array.

Place 1 at the beginning

Similarly, place every unsorted element at its correct position.

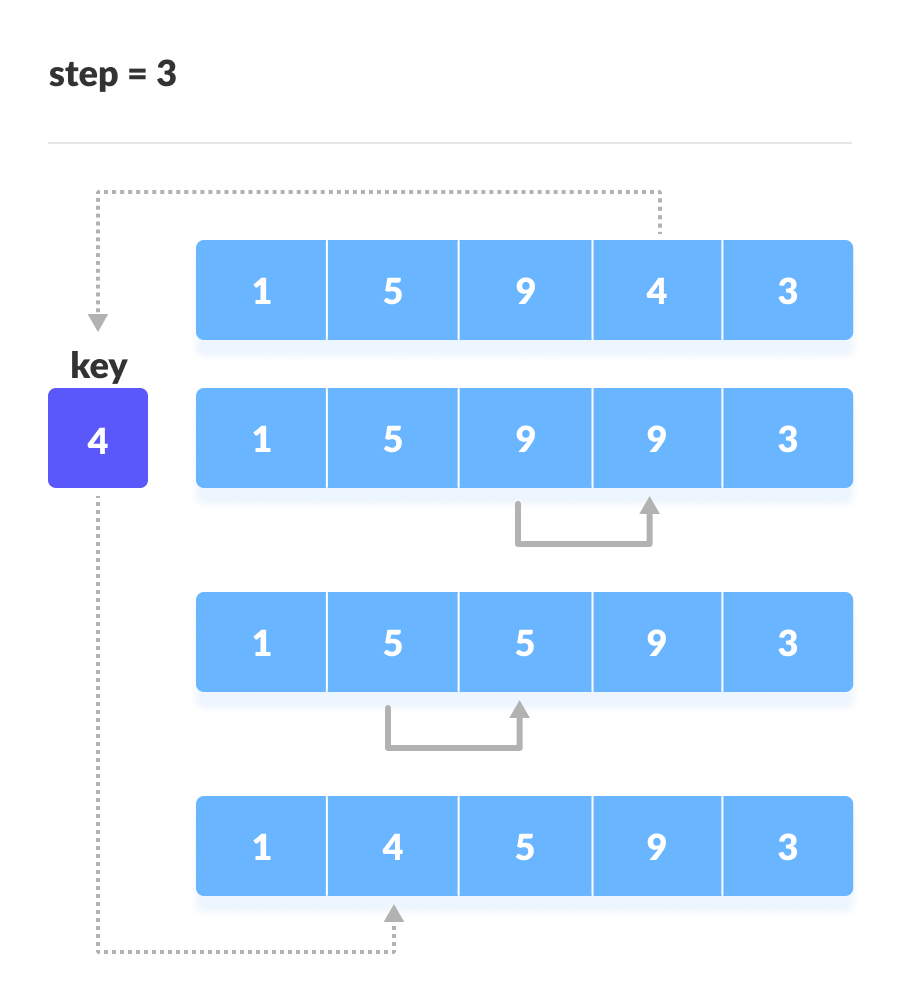

Place 4 behind 1

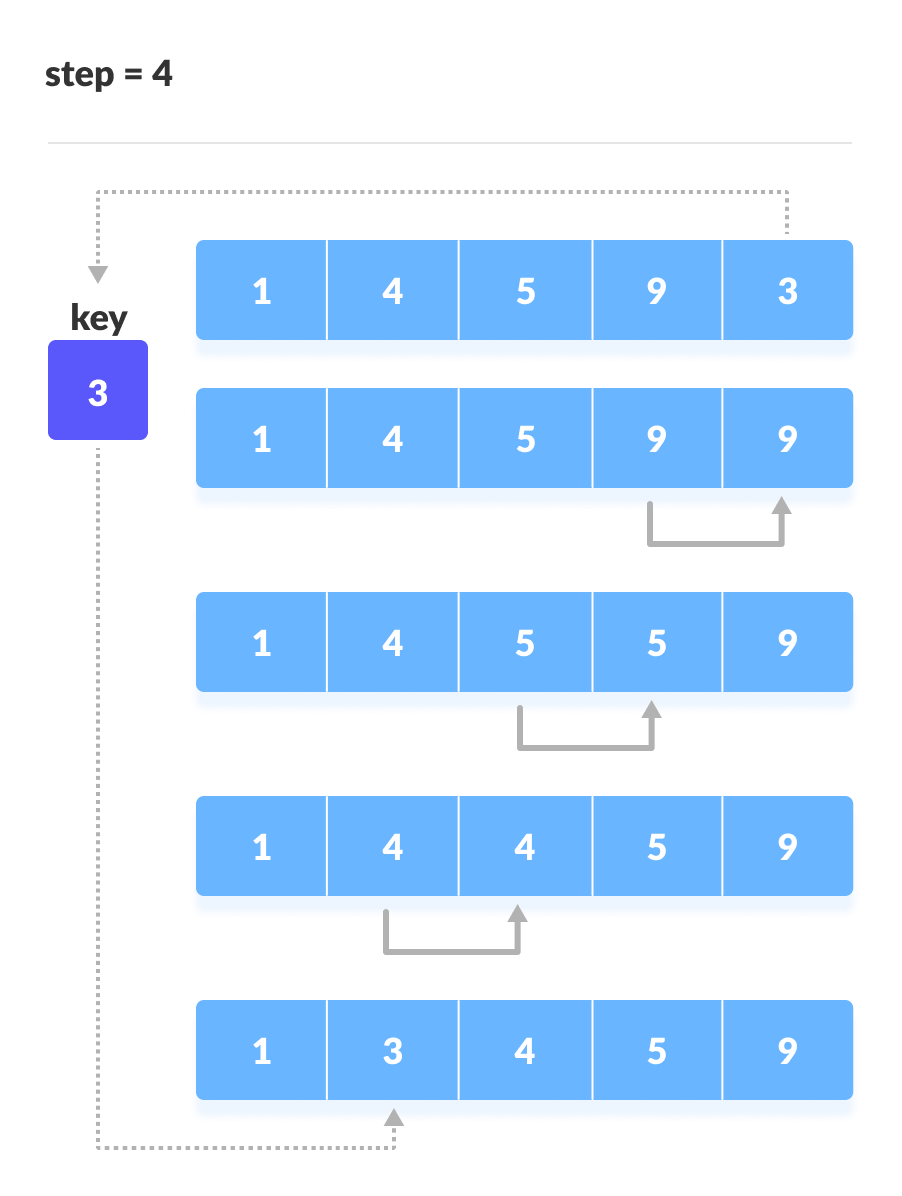

Place 3 behind 1 and the array is sorted

2. Insertion Sort Algorithm

insertionSort(array)
  mark first element as sorted
  for each unsorted element X
    'extract' the element X
    for j <- lastSortedIndex down to 0
      if current element j > X
        move sorted element to the right by 1
    break loop and insert X here
end insertionSort

3. Insertion Sort in Python, Java, and C/C++

Source code by Python Language:

# Insertion sort in Python


def insertionSort(array):

    for step in range(1, len(array)):
        key = array[step]
        j = step - 1

        # Compare key with each element on the left of it until an element smaller than it is found
        # For descending order, change key<array[j] to key>array[j].
        while j >= 0 and key < array[j]:
            array[j + 1] = array[j]
            j = j - 1

        # Place key at after the element just smaller than it.
        array[j + 1] = key


data = [9, 5, 1, 4, 3]
insertionSort(data)
print('Sorted Array in Ascending Order:')
print(data)

Source code by Java Language:

// Insertion sort in Java

import java.util.Arrays;

class InsertionSort {

  void insertionSort(int array[]) {
    int size = array.length;

    for (int step = 1; step < size; step++) {
      int key = array[step];
      int j = step - 1;

      // Compare key with each element on the left of it until an element smaller than
      // it is found.
      // For descending order, change key<array[j] to key>array[j].
      while (j >= 0 && key < array[j]) {
        array[j + 1] = array[j];
        --j;
      }

      // Place key at after the element just smaller than it.
      array[j + 1] = key;
    }
  }

  // Driver code
  public static void main(String args[]) {
    int[] data = { 9, 5, 1, 4, 3 };
    InsertionSort is = new InsertionSort();
    is.insertionSort(data);
    System.out.println("Sorted Array in Ascending Order: ");
    System.out.println(Arrays.toString(data));
  }
}

Source code by C Language:

// Insertion sort in C

#include <stdio.h>

// Function to print an array
void printArray(int array[], int size) {
  for (int i = 0; i < size; i++) {
    printf("%d ", array[i]);
  }
  printf("\n");
}

void insertionSort(int array[], int size) {
  for (int step = 1; step < size; step++) {
    int key = array[step];
    int j = step - 1;

    // Compare key with each element on the left of it until an element smaller than
    // it is found.
    // For descending order, change key<array[j] to key>array[j].
    while (key < array[j] && j >= 0) {
      array[j + 1] = array[j];
      --j;
    }
    array[j + 1] = key;
  }
}

// Driver code
int main() {
  int data[] = {9, 5, 1, 4, 3};
  int size = sizeof(data) / sizeof(data[0]);
  insertionSort(data, size);
  printf("Sorted array in ascending order:\n");
  printArray(data, size);
}

Source code by C++ Language:

// Insertion sort in C++

#include <iostream>
using namespace std;

// Function to print an array
void printArray(int array[], int size) {
  for (int i = 0; i < size; i++) {
    cout << array[i] << " ";
  }
  cout << endl;
}

void insertionSort(int array[], int size) {
  for (int step = 1; step < size; step++) {
    int key = array[step];
    int j = step - 1;

    // Compare key with each element on the left of it until an element smaller than
    // it is found.
    // For descending order, change key<array[j] to key>array[j].
    while (key < array[j] && j >= 0) {
      array[j + 1] = array[j];
      --j;
    }
    array[j + 1] = key;
  }
}

// Driver code
int main() {
  int data[] = {9, 5, 1, 4, 3};
  int size = sizeof(data) / sizeof(data[0]);
  insertionSort(data, size);
  cout << "Sorted array in ascending order:\n";
  printArray(data, size);
}

4. Insertion Sort Complexity

Time Complexity
Best	O(n)
Worst	O(n²)
Average	O(n²)
Space Complexity	O(1)
Stability	Yes

Time Complexities

Worst Case Complexity: O(n²)
Suppose, an array is in ascending order, and you want to sort it in descending order. In this case, worst case complexity occurs.

Each element has to be compared with each of the other elements so, for every nth element, (n-1) number of comparisons are made.

Thus, the total number of comparisons = n*(n-1) ~ n²
Best Case Complexity: O(n)
When the array is already sorted, the outer loop runs for n number of times whereas the inner loop does not run at all. So, there are only n number of comparisons. Thus, complexity is linear.
Average Case Complexity: O(n²)
It occurs when the elements of an array are in jumbled order (neither ascending nor descending).
